PRESSURE MAPPING & IMAGING SYSTEM

MODEL NO: PS256

It is widely known that pressure mapping and imaging systems are an effective tool in the prevention and management of pressure related wounds and skin breakdown, but, few understand that the benefits of pressure mapping reach far beyond simply visualizing pressure under the client’s contact area.

The full-function PS256 Pressure Mapping & Imaging System contains 256 sensors, providing data to perform all forms of clinical intervention, seating assessments and troubleshooting. Each PS 256 pressure mapping and imaging systems comes complete with an instructional DVD & full colour manual.

Applications and uses:

  • Gauge pressure under the client’s contact areas
  • Measure anatomical landmarks
  • Troubleshoot seating concerns easily and quickly
  • Freeze, save and print any and all images, and record up to 10 minutes of data
  • Record up to 10 minutes of video
  • Examine peak pressures
  • Create custom seating design
  • Locate the client’s center of gravity
  • Evaluate drive wheel placement
  • Track center of force
  • Ensure proper inflation of air cushions
  • Eliminate the guessing game associated with the use of air cushions
  • Gain approval for equipment through improved documentation

Specification and Features:

Display Features

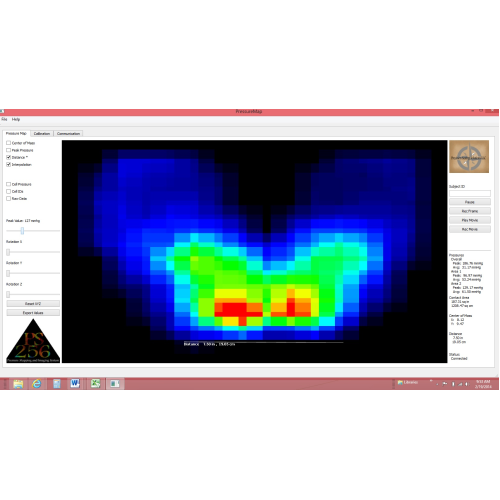

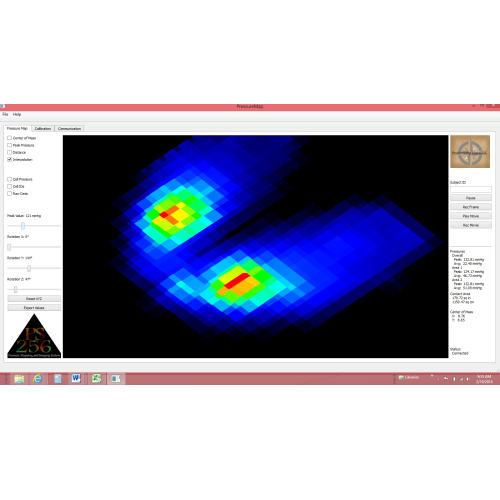

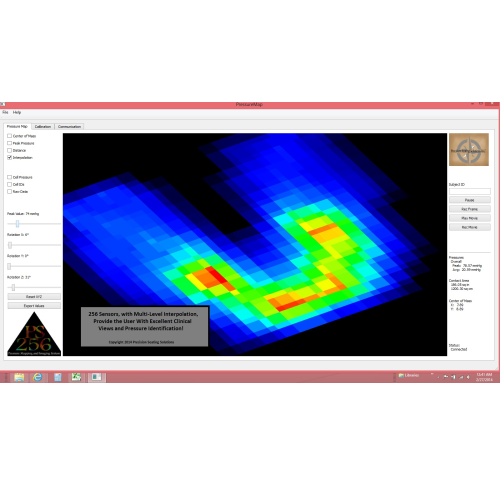

  • Full 16 color display with interpolation, creating increased resolution and precision images
  • Rotating graphics of the color graphic images
  • Reversible graphics, designed with flexibility in mind

Software Features

  • Print any and all data related to your pressure mapping session, including color images, average pressures, peak pressures, the peak pressure index as well as the client’s contact area
  • Log the client’s individual data and save files for future use or comparison
  • Select the method of displaying the client’s data as a graph, number table or 3-D image

Performance Features

  • An 18” x 18” sensor sheet, containing 256 sensors and real time display
  • Easily installed software, compatible with any computer system via USB
  • Center of gravity feature, allows the user to assess various issues including but not limited to the client’s seating and positioning, self-propulsion capabilities or drive wheel placement with ease
  • Linear measurement tool, designed to calculate the distance between anatomical landmarks (i.e., ischial tuberosities, contact area width, etc.)
  • Freeze frame option with recordable snapshot feature allows the user to effortlessly analyze data and print images for medical documentation and letters of medical necessity
  • Ten minutes of image video record and playback, ideal for self-propulsion assessment and settle analysis
  • A fully adjustable peak pressure identification tool, displaying, in real time, the peak pressure which is present within the selected area
  • Fully adjustable maximum pressure scale, allowing color display adjustment for premium visualization of problem areas
  • Contact area indicator, identifying the number of sensors actively sensing pressure over a fully adjustable threshold
